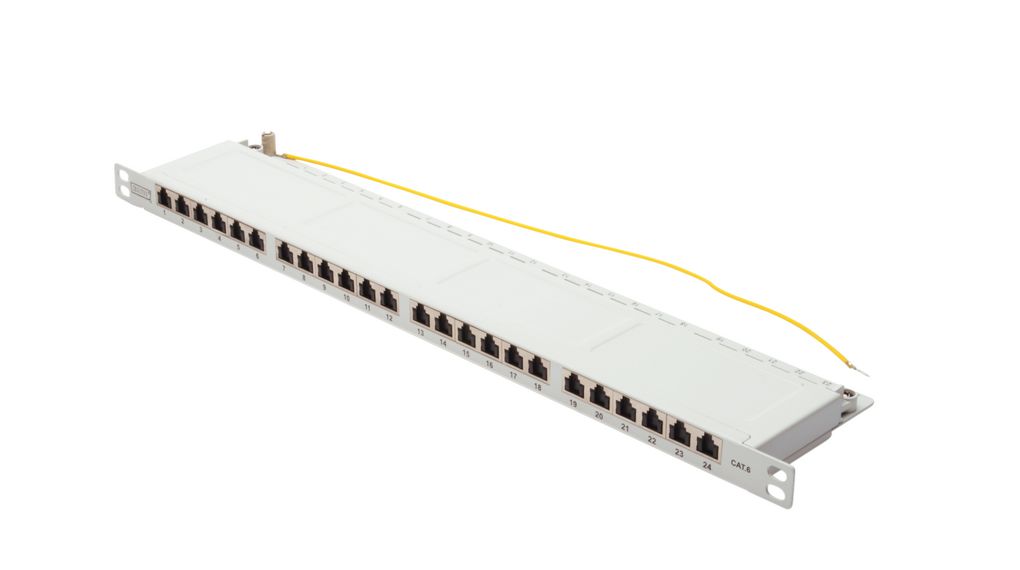

PATCH PANEL Cat6 24 Port STP DN-91624S

MODEL : DN-91624SCAT 6 PATCH PANEL, SHIELDED, 1U, 24-PORT, 8P8C, GREY, 483 MM (19″)FUTURE-ORIENTED STANDARDS AND HIGH-END QUALITY FOR YOUR NETWORK. : STURDY PATCH PANEL WITH METAL HOUSING, COMPLETE SHIELDING OF HOUSING AND SHIELD CONTACT, CABLE INSTALLATION BY IDC-STRIPS, CENTRAL GROUNDING CONNECTOR, DIELECTRIC STRENGTH UP TO 1500 VDC (CONTACT/GROUND)THE DIGITUS® “DN-91624S-EA” CAT 6A PATCH PANEL IS AVAILABLE AS 24-PORT VERSION AND IS MADE OF 1.5 MM COLD-ROLLED STEEL WHICH MAKES IT A STURDY PATCH PANEL FOR 19″ RACK MOUNTING. IT COMPLIES WITH THE 802.3AT POE+ AND THE 802.3AF POE STANDARDAND IS EQUIPPED WITH DUST PROTECTION SHUTTERS.TECHNICAL DETAILS: TRANSMISSION PROPERTIES: CATEGORY 6A, CLASS EA, AREA OF APPLICATION: UP TO 500 MHZ, 10GBASE-T, NORMS: ISO/IEC 11801 2ND ED., EN 50173-1, EIA/TIA 568-C, 802.3AF, 802.3AT POE+GENERAL PROPERTIES: SUITABLE FOR 483 MM (19″) CABINET MOUNTING, RJ45 FEMALE, 8P8C, CABLE INSTALLATION VIA LSA STRIPS, COLOR CODED ACCORDING TO EIA/TIA 568 A & B, CABLE FIXING WITH SMART CABLE TIES, CENTRAL GROUND CONNECTION, 360° SHIELD COVERAGE, INTERGRATED DUST COVER, PLASTIC LABEL FIELD, CAT 6A CLASS EA FOR UP TO 500 MHZMECHANICAL PROPERTIES: HOUSING MATERIAL: 1.5 MM GALVANIC COLD ROLLED STEEL, ACC. TO EN1.4301, UNS S30400, AISI 304 AND LMSAD110, RJ45 FEMALE MATERIAL: ABS UL 94V-0, RJ45 FEMALE CONTACT: TINNED PHOSPHOR BRONZE, 0.5 µ GOLD-PLATED CONTACT, RJ45 SHIELDING: TINNED BRONZE, LSA TERMINATION CLAMP: KRONE LSA+, UL 94V-2, ZINC PLATED PHOSPHOR BRONZE, GROUND WIRE: NOT INCLUDED, CONDUCTOR PLATE: FR4, UL 94V-0PHYSICAL PROPERTIES: INSERTION FORCE: 30N MAX. (IEC 60603-7-5), RETENTION STRENGTH: 7.7 KG BETWEEN JACK AND PLUG, OPERATION TEMPERATURE: -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C), MATING CYCLES FEMALE: > 750 ACC. TO ISO/IEC 11801, IEC 60603-7-5, CLAMP: > 200 ACC. TO ISO/IEC 11801, IEC 60603-7-5, IDC WIRE SIZE: 22 – 26, AWG SOLID AND STRANDED CONDUCTOR, INSULATION RESISTANCE: > 500 MOHM, CONTACT RESISTANCE: < 20 MILLIOHM, DIELECTRIC STRENGTH: 1000 VDC (CONTACT/CONTACT), 1500 VDC (CONTACT/GROUND), MOUNTING METHOD: 482.6 MM (19 INCH) MOUNTING, COLOUR: GREY, WIDTH: 482.6, HEIGHT: 44, DEPTH: 109, RAL-NUMBER: 7035, CONNECTION TYPE: LSA, SCREENED: YES, SUITABLE FOR NUMBER OF CONNECTORS: 24, CATEGORY: 6A (IEC), TYPE OF CONNECTOR: RJ45 8(8), NUMBER OF HEIGHT UNITS: 1, NUMBER OF BUSES/COUPLINGS: 24
